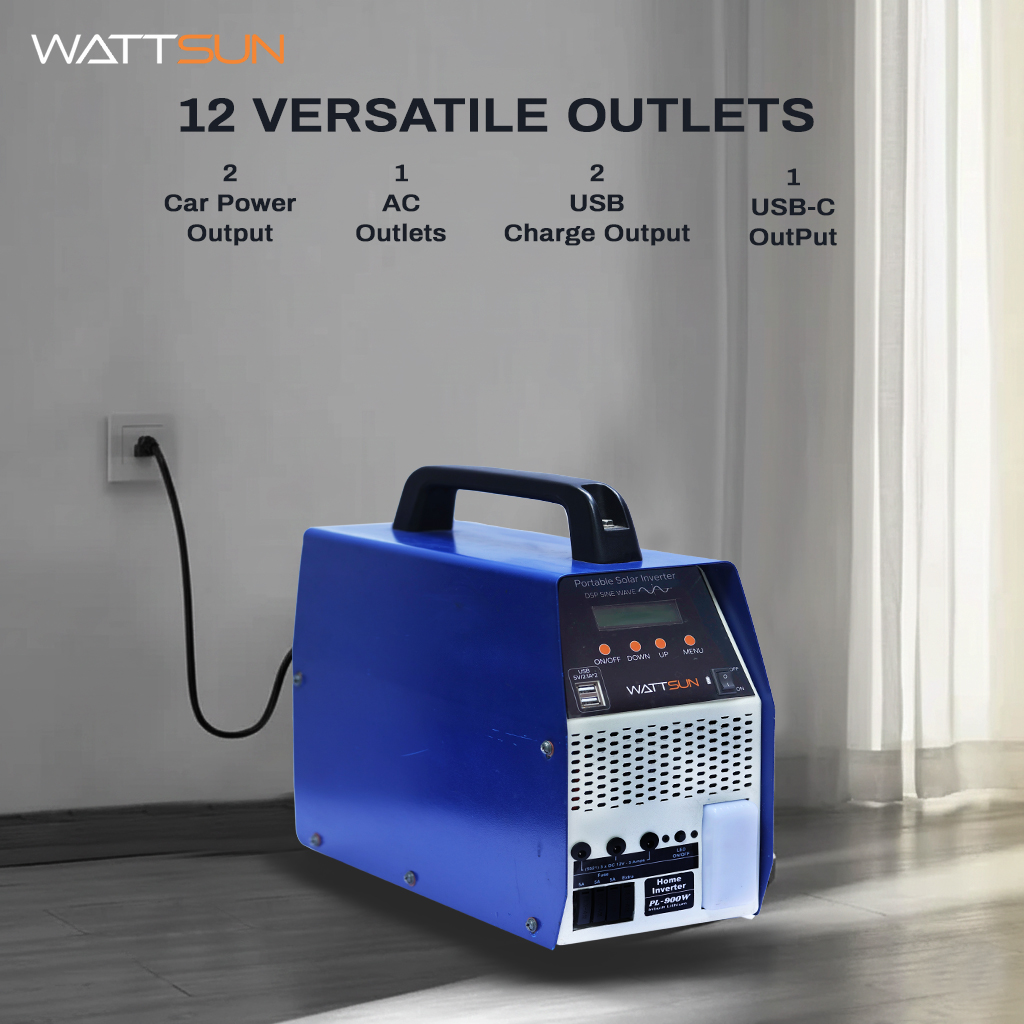

86Ah, 1KVA Solar Home Inverter, with In-built Lithium Battery, Portable, Model: PL-900W-XL
- Battery : Lithium Iron Phosphate (LiFePo4)
- Peak Output Power : 700VA
- Voltage & Type : AC - 230 V, 50Hz, Pure Sine Wave
- DC - Output : 12V- Cigarette Lighter Socket
- Other DC Outputs : 5V to 20 V & DC Ports
Charging Input Power (4 Way of Recharge) :
- AC Inbuilt Charger
- Solar Panel PV Charge
- Car Charge Input (From Cigarette Socket)
- LPG / Petrol Genset Charger
Application
Due to Big Lithium Battery (86Ah), It has Long Backup hence more useful for home use in case of Power cuts. It support by 240 Watt MPPT Solar Panel for Quick Charging of Battery. It is Portable and Can also Carried for Outdoor Fields Jobs, Shop and Commercial Applications
Descripton
- This is a Portable multifunctional Lithium Battery UPS Inverter.

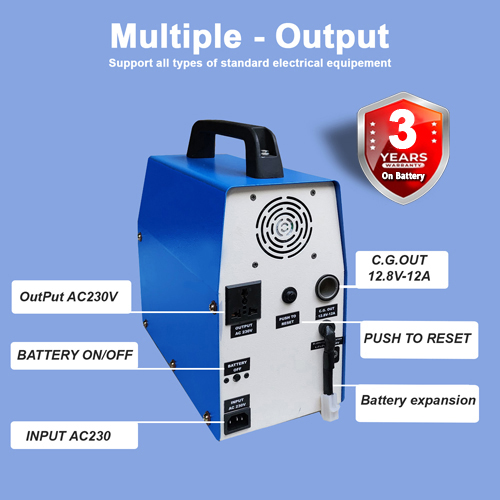

- This inverter gives AC 230V output & also 2* DC-5V for smartphone charging & 4* 12V DC output for running 12V DC appliances.
- This 900 Inverter Model has an inbuilt 15W High Power LED Light.
- The main advantage of this solar inverter is that it is a UPS, hence it can supply Main AC 230V to home appliances & when main power fails, the home load automatically shifts over to Battery Inverter Power.
- This is a lightweight Portable Power Inverter & can be used at Household & as well can be carried away anywhere for outdoor/field power applications.
- This inverter has a big Lithium Power Pack of 12.8V-86AH, which is largest in its Class & hence has a longer backup period.
The Lithium Battery of this Solar Invertor can be charged by any of the 4 ways :
- 1) AC 230V mains (Grid Power) Inbuilt 15A-200Watt fast charger
- 2) Car charging through C.G Port in running car 150W.(C.G Load provided)
- 3) Charging with Solar Panel 200W (Optional)
- 4) Battery can be expended with 12.8V-86AH extra battery (Optional) & Further both batteries can be fast charged (in 1Hr by Portable Engine Charger,when all charging options are exhausted).
Apart From above, the Battery Back up Period can be further extended by connecting additional Battery bank of 100Ah at its Expansion Socket.
The Remaining Battery Power can be judged through its LCD Display.
This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
Product Information

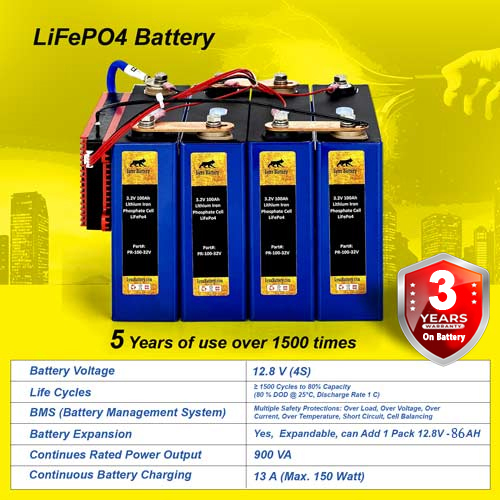

- Battery: Lithium Iron Phosphate (LiFePo4)
- Cell Type : Prismatic 3.2 V- 86 AH
- Battery Voltage : 12.8 V (4S)
- Peak Capacity : 12.8V - 86 AH (1100Wh)
- Life Cycles : ≥ 2000 Cycles to 80% Capacity (80 % DOD @ 25°C, Discharge Rate 1 C)
- BMS (Battery Management System) : Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing
- Battery Expansion : Yes, Expandable, can Add 1 Pack 12.8V - 86 AH
- Shelf Life : Charge Every 3 - 6 Months
AC 230 Volt Output (Invertor Power Supply)
- Continues Rated Power Output : 600 VA
- Peak Output Power : 700 VA
- Voltage & Type : AC - 230 V,50Hz, Sine Wave
- THD : < 3% (Full R Load)
- Power Factor : 0.8
- Over Load : 110% < Load <120% @ 1 min ; 120% < Load <150% @ 0.5 S
- Power Less (No Load & Turned- Off) : < 10W
- AC Output Back time @ 70% of rated load (VA) : ≥ 2 Hours & 30 Minutes
- Max. Effecient (>70% Load) : 85%
- Output Socket : Indian Version AC Socket x 1(US/UK/EU/AU Socket)
DC - Output- 12V- Cigarette Lighter Socket
- Output Voltage : 12.8 ± 1 V
- Continous Output Current : 12 A (Max. 150 Watt)
- DC Output Over Load Current Protection : Yes >13 A (Through Fuse Provided in C.G Pin)
- DC Output ShortCircuit Protection : Yes (Disconnect Load Recovery)
Other DC Outputs - 5V to 20 V & DC Ports
- USB Output (2) : 2* 5V DC, 2.4 A (12W Per Port)
- 12V DC -DC 5521 (3 Ports) : 2 x 12V, 5A-60 W Each (5.5mm x 2.1 mm)
- 12V DC -DC 5521 Short Ckt & Overload Protection : Through 5Amp Glass Fuse
- USB & DC Over Load Current Protection : Yes
- USB & DC Output short Circuit Protection : Yes (Disconnect Load Recovery)
- Illumination / LED Flash Lighting : 1 * 15W (High Bright)
Indicators in Panel
- Battery Level / Status Indicators : LCD Display
- Function Indicators : Fault / AC Output / Mains Charging /Modes/ Load Percentage, Battery Voltage, Mains Voltage, Temprature, UPS / Inverter Mode
Charging Input Power (4 Way of Recharge)
- AC Inbuilt Charger (Charging From Grid Power) (AC input 120V to 275V) : External AC Input Power Cord Provided Charging Rate 15 Amps Charging Time >5 Hours
- Solar Panel PV Charge : MPPT Solar Panel - 15V / 15 Amps - Max 240 W, Charging Time 5 - 6 Hours
- Car Charge Input (From Cigarette Socket) : 14V, 10 Amps Max. Charging Time 7 - 8 Hours
- LPG / Petrol Genset Charger : 15 V - 60 Amps (750 Watts Maximum ) Charging time Approx 2 Hr for 80% Charging.
Heat Disipation : Air Cooling (Fan), Aluminium Housing
IP Rate : IP 32 Protected from Water Spary < 15˚From Vertical
Working Condition
- Charge Temperature : 0˚C ~ 45˚C
- Operating Usage Temp. : -10˚C ~ 45˚C
- Operation Storage Humidity : 5% ~ 90%
Product Size & Weight
- Dimensions (LxWxH) : 175*400*380 mm
- Net Weight : 18.5kg
Package Contents :
- 1* 900 VA Portable Lithium Power Inverter
- 1* Car Charger (Cigarette Lighter Cable) (Optional)
- 1* 3 pin Mains AC Cord
- 1* User Manual
- MPTT Solar Pannel 240 Watt (Optional)
